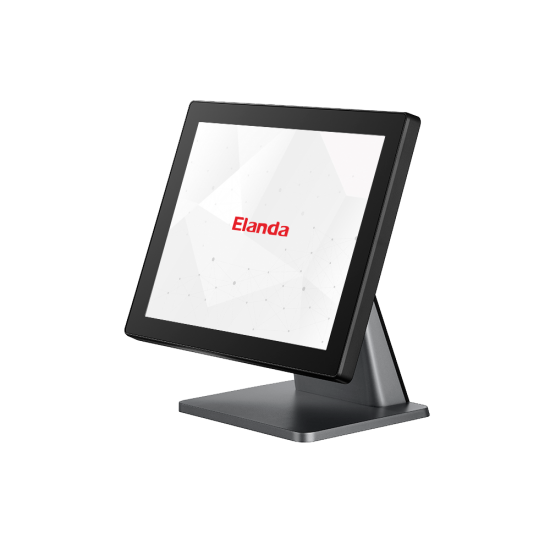

15inch Full Aluminum Die-casting Touch POS Terminal

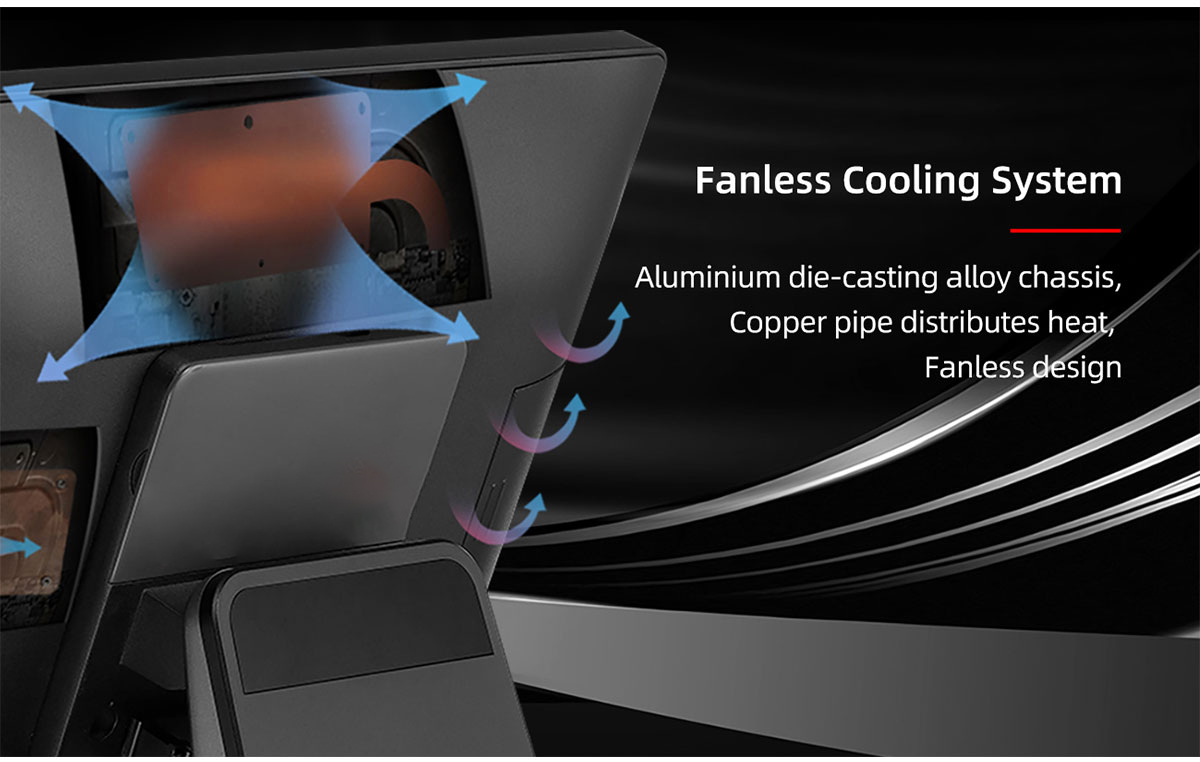

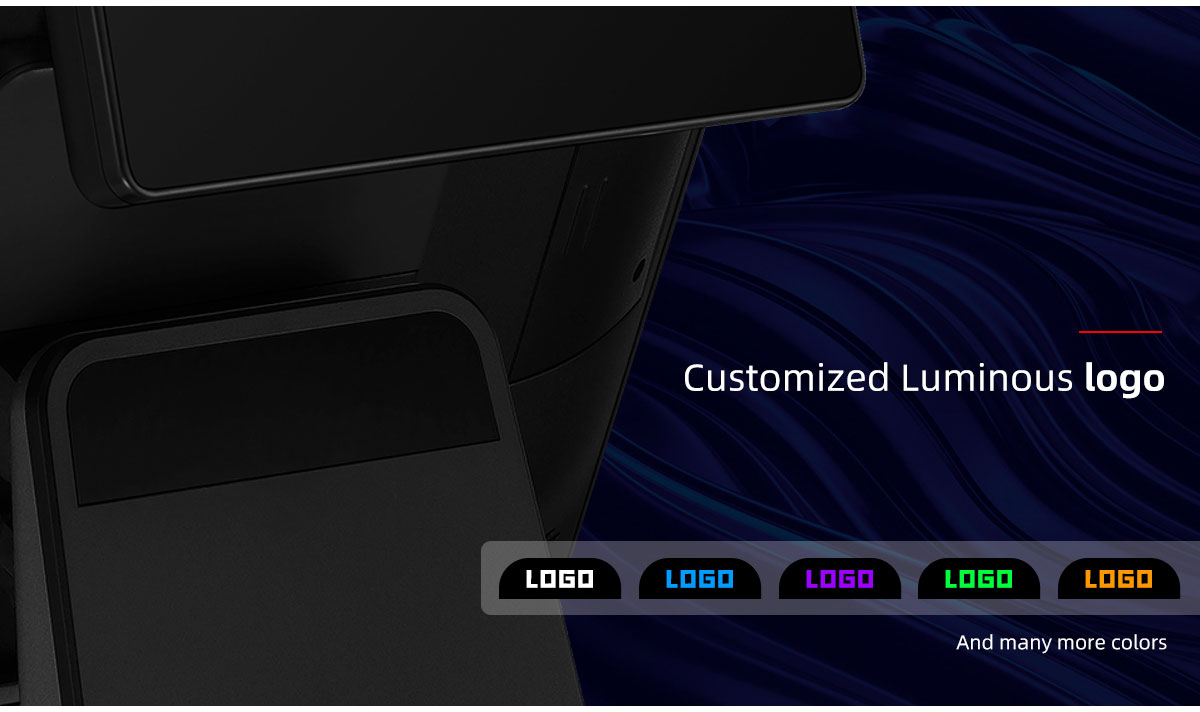

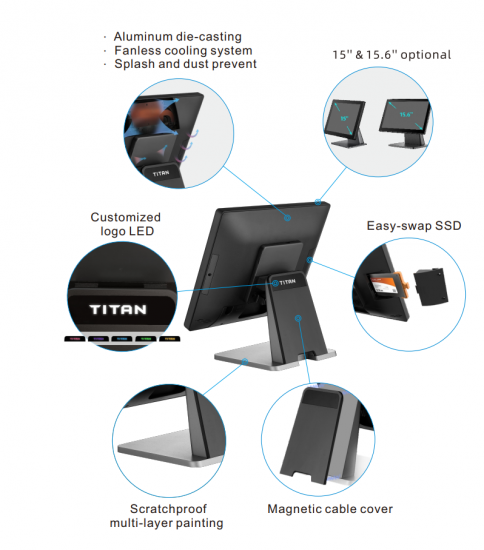

15 inch, Industrial-grade Fan-free MB supporting Intel 11th gen CPU, Full aluminum die-casting, Magnetic cover with LED logo customization
Specification
| model | T3 | ||
| CPU Support | Intel Elkhart Lake j6412 2.0GHz (up to 2.6GHz, 1.5MB Cache), FANLESS | Intel Tiger Lake I3 1115G4 3.0GHz(up to 4.1GHz,6MB Cache), FANLESS or Intel Tiger Lake I5 1135G7 2.4GHz(up to 4.2GHz,8MB Cache), FANLESS | |
| System Memory | 1 x DDR4, SO-DIMM, 4GB (Max. 32GB) | 1 x DDR4, SO-DIMM, 4GB (Max. 64GB) | |

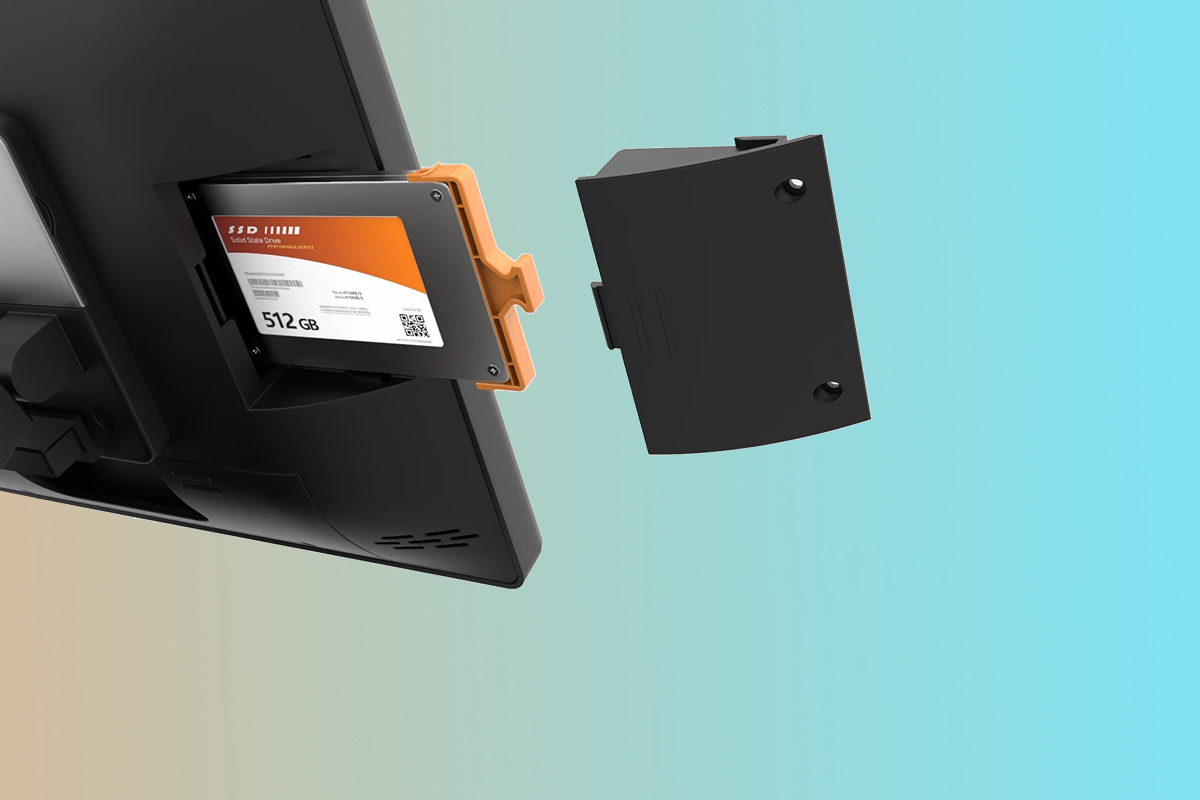

| Storage | SATA | 1x 2.5” SATA SSD 128GB (64G/256G /512G optional) | N/A |
| mSATA | 1x mSATA-SSD(Optional) | 1x m.2-SSDSSD 128GB (64G/256G /512G optional) | |
| LCD | Size | 15" TFT LCD Panel | |
| Brightness | 250~350cd/m2 (Typ.) | ||
| Resolution | 1024 x 768 | ||
| Touch Screen | True-Flat Projected Capacitive Touch | ||
| Tilt Angle | 0 ~ 60 degree | ||

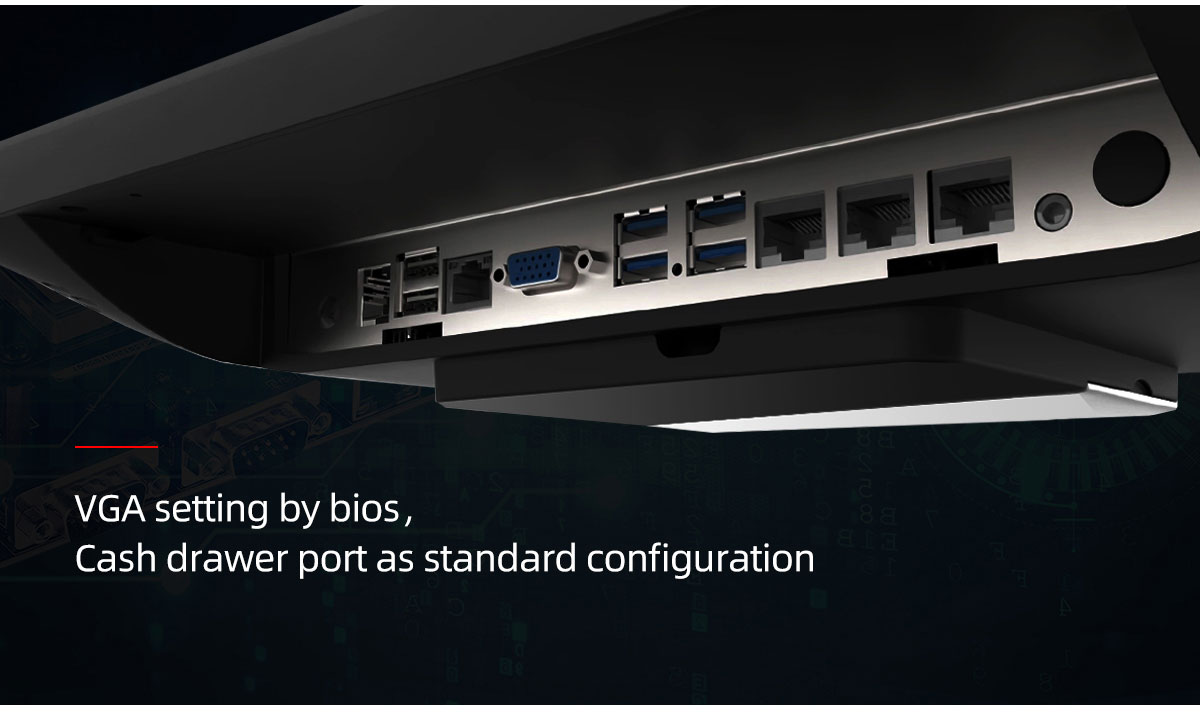

| External I/O Port | USB | 4 x USB 3.0 +2 x USB 2.0 (Powerd, default setting) | 4 x USB 3.0 +2 x USB 2.0 |
| Serial port | 3 x Serial port (RJ50) (COM1~3: 0/5/12V by pin-JP) | 2 x Serial port (RJ50) (COM1~2: 0/5/12V by pin-JP) | |
| VGA | 1 x VGA (Power enable by BIOS; +12V) | N/A | |
| HDMI | 1 x HDMI Connector (enabled by BIOS, VGA Colay) | 1 x HDMI | |
| Cash Drawer Port | 1 x RJ11, 12V&24V | N/A | |
| LAN | 1 x LAN (10/100/1000Mb) | ||
| Audio | 1 x Mic-In/Speaker-out (Combo Jack) | ||
| DC-IN | 1 x DC In(4PIN) | 1 x DC In | |
| DC-OUT | N/A | 1 x DC12V(2nd Display Power) | |
| Power Switch | 1 x Power Switch | ||
| Speaker | 2 x 2W speaker (Optional) | ||
| Base LED | USB, White, 95X20X2.8mm (Optional) | ||
| Power | External power adapter, 12V-5A/60W | External power adapter, 12V-7A/84W | |
| EMC Safety | CE FCC UKCA ROHS | ||
| Environment | Operating Temperature | 0°C ~ 35°C | |
| Storage Temperature | -15°C ~ 60°C | ||
| Operating Humidity | 20% - 85% RH non condensing | ||
| Storage Humidity | 20% - 85% RH non condensing | ||
| OS Support | Windows11/10 LTSC/Ubuntu 20.0.4 | ||
| Dimension (W x D x H) | 445mm*310mm*415mm | ||
| Weight (N.W./G.W.) | 4.7Kg / 6.0Kg | ||
| Wall Mount | VESA 100 x 100mm | ||
| Optional | WIFI | mPCI-E WiFi/BT | |
| Fingerprint | U4500(USB Fingerprint Reader Module) | ||
| MSR | MSR + iButton (Combo) or MSR +RFID (Combo), USB(VCOM optional), 1, 2, 3 Track, ISO7810,7811-1/2/3/4/5,IBM,AAMVA,JIS-2 Standard | ||
| Scanner | DY3090(USB, 1D, 2D, Reading precision:≥3mil, Dimension:21.4mm*10.8*15.2mm) | ||
| Customer display | VFD display, USB (VCOM), 2x20 characters | ||
| 2nd Display | VGA, 9.7" (1024*768) VGA, 11.6" (1366*768) VGA, 12.1" (1280*800) | HDMI, 11.6" (1366*768) | |
