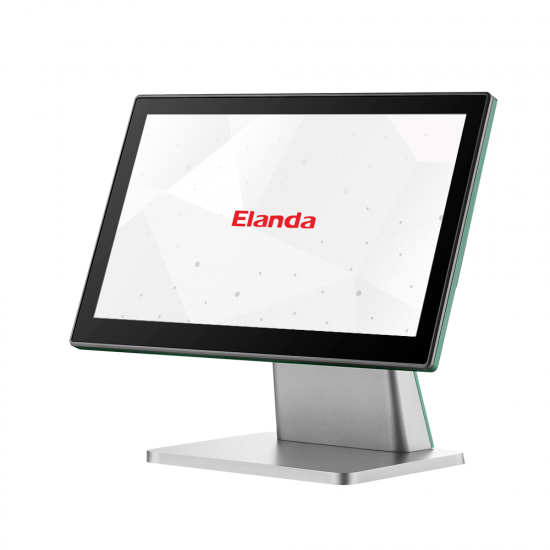

15.6inch Aluminium Die-casting Touch POS Terminal

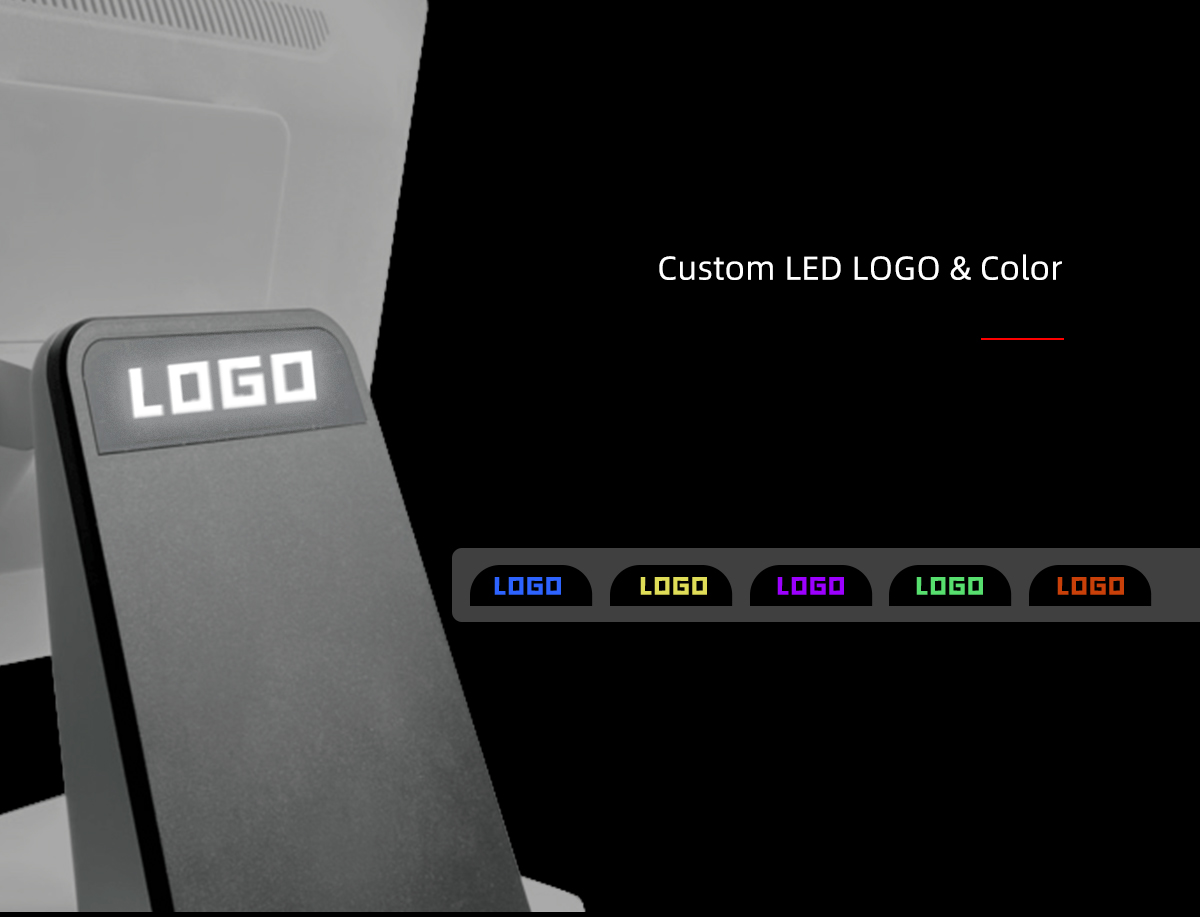

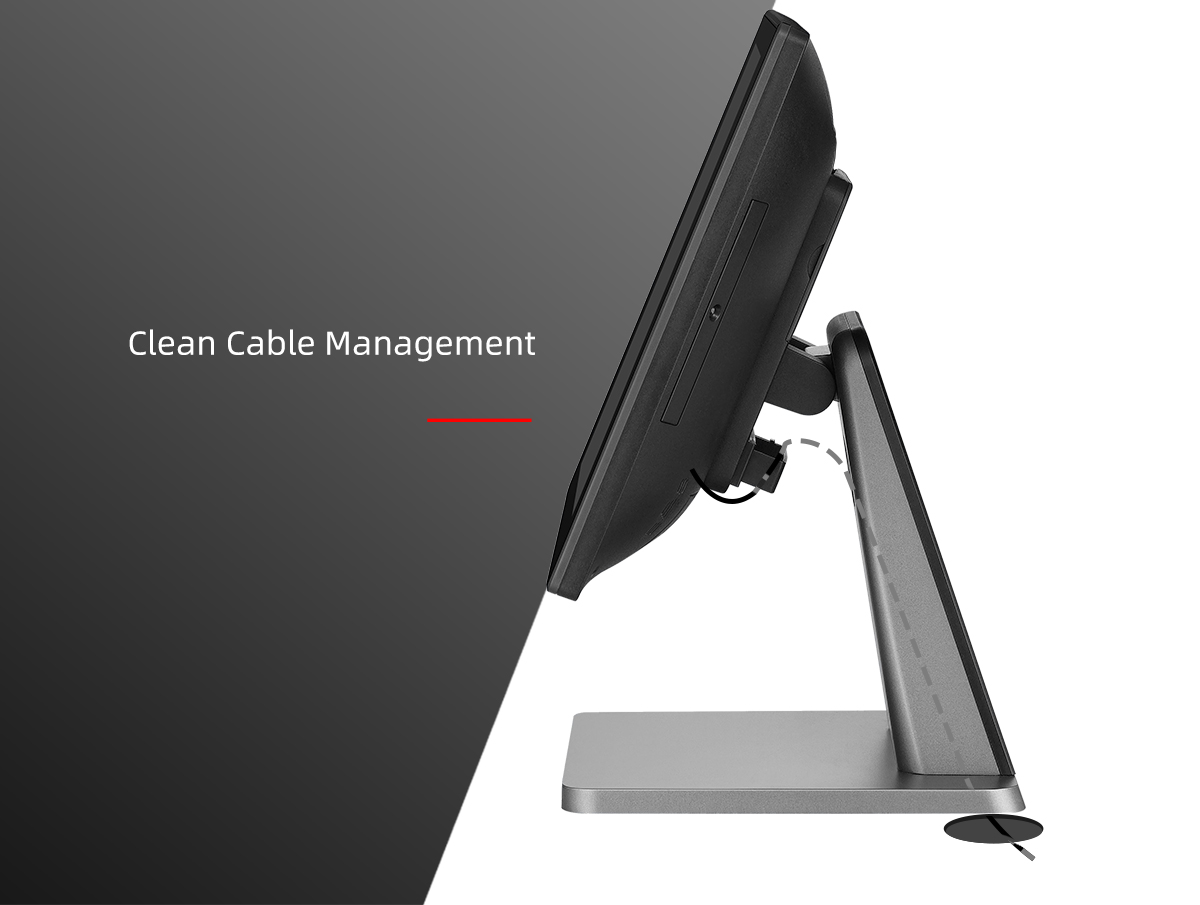

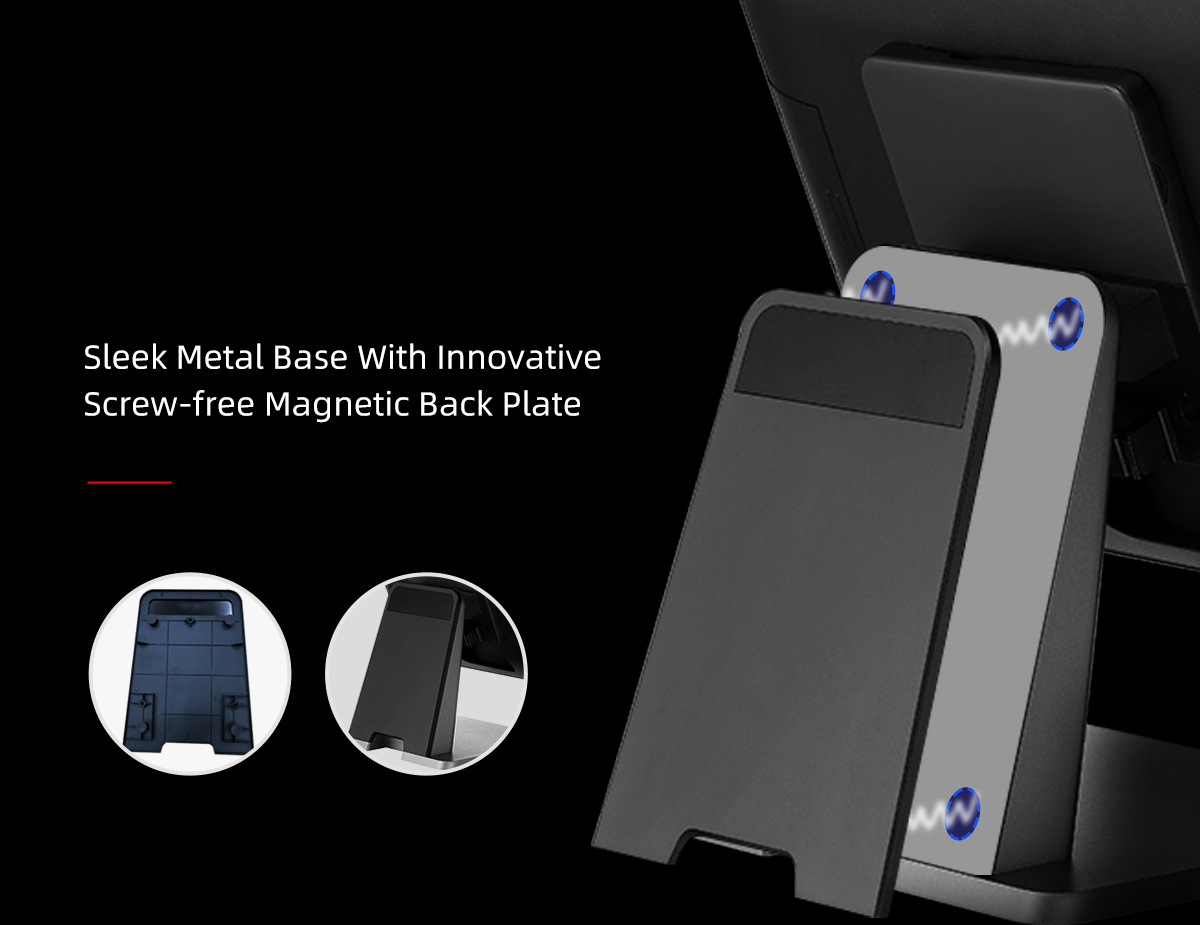

15.6”/16:9 widescreen with 1366*768 resolution Simple and fashionable design, Aluminum Die-casting base Clean cable Management, sleek base with an innovative magnetic cable cover and a LED Logo light(optional) Modular-design: 2nd Display, MSR, I-Button
Specification
| model | A3 | |
| CPU Support | Rockchip3568 ,Cortex-A55 , up to 2.0GHz | |
| System Memory | DDR4,4G(Onboard) (2G for optional) | |
| Storage | eMMC 32G + sim card slot x 1 (16G for optional) | |
| LCD | Size | 15.6" TFT LCD Panel |
| Brightness | 220~250cd/m2 (Typ.) | |
| Resolution | 1366 x 768 (1920 x 1080 optional) | |
| Touch Screen | True-Flat Projected Capacitive Touch | |
| Tilt Angle | 0 ~ 60 degree | |
| External I/O Port | USB | 2 x USB 3.0 + 2 x USB 2.0 |
| Serial port | 1 x Serial port (RJ12) | |
| EDP(Mini HDMI) | EDP Signal (for 2nd Display port) optional | |

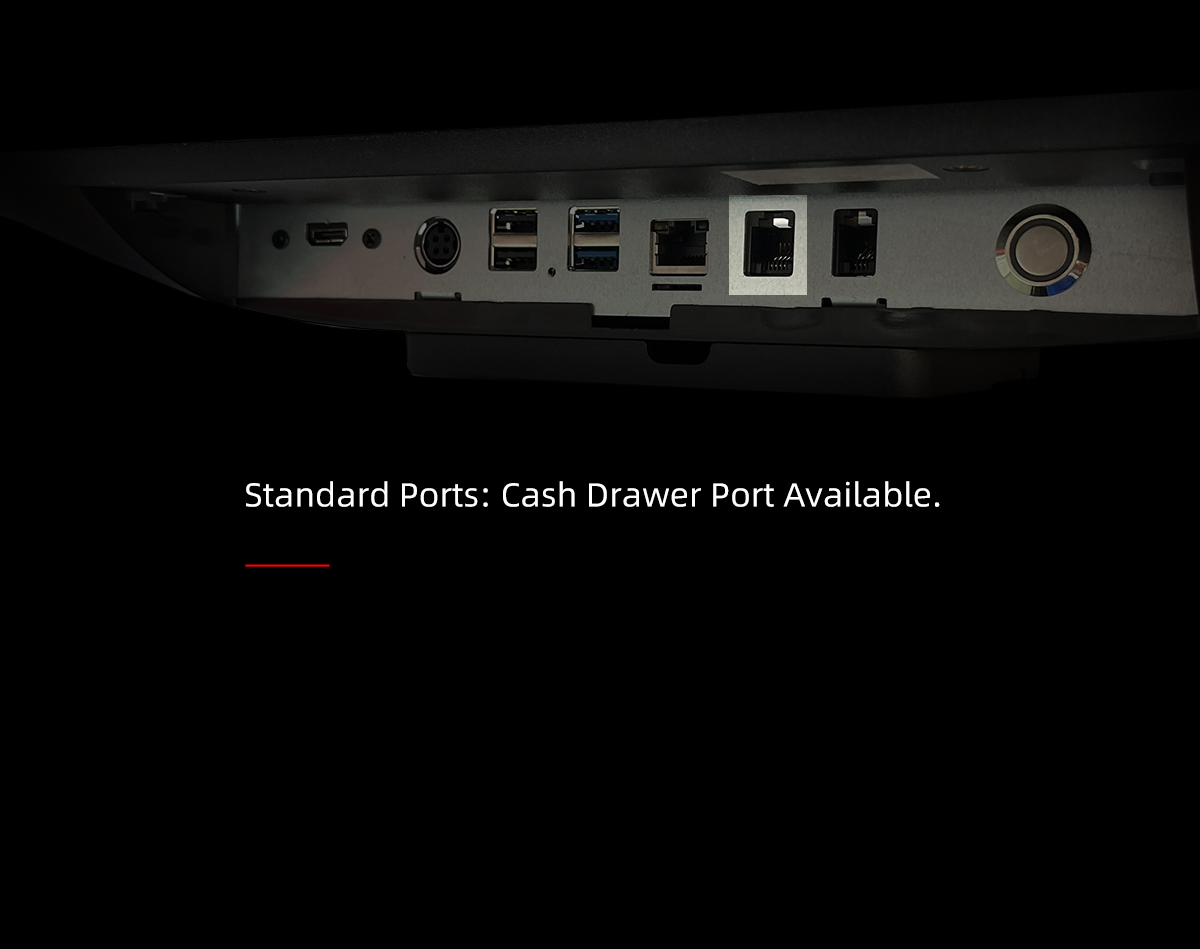

| Cash Drawer Port | 1 x Cash Drawer Port (RJ11), DC12V | |
| LAN | 1 x LAN (10/100/1000Mb) | |
| Audio | N/A | |
| DC-IN | 1 x DC In(4pin) | |
| DC-OUT | N/A | |
| Power Switch | 1 x Power Switch(Power LED) | |
| WiFi & BT | WiFi/BT(Onboard) | |
| Speaker | 2 x 2W speaker (Optional) | |
| Base LED | USB,White,95X20X2.8mm (Optional) | |
| Power | External power adapter,12V-5A/60W | |
| EMC Safety | CE, ROHS | |
| Environment | Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -15°C ~ 60°C | |
| Operating Humidity | 20% - 85% RH non condensing | |
| Storage Humidity | 20% - 85% RH non condensing | |
| OS Support | Android 11.0 | |
| Dimension (W x D x H) | 385mm*200mm*320mm/package size:445mm*310mm*415mm | |
| Weight (N.W./G.W.) | 3.8Kg / 5.5Kg | |
| Wall Mount | VESA 100 x 100mm | |

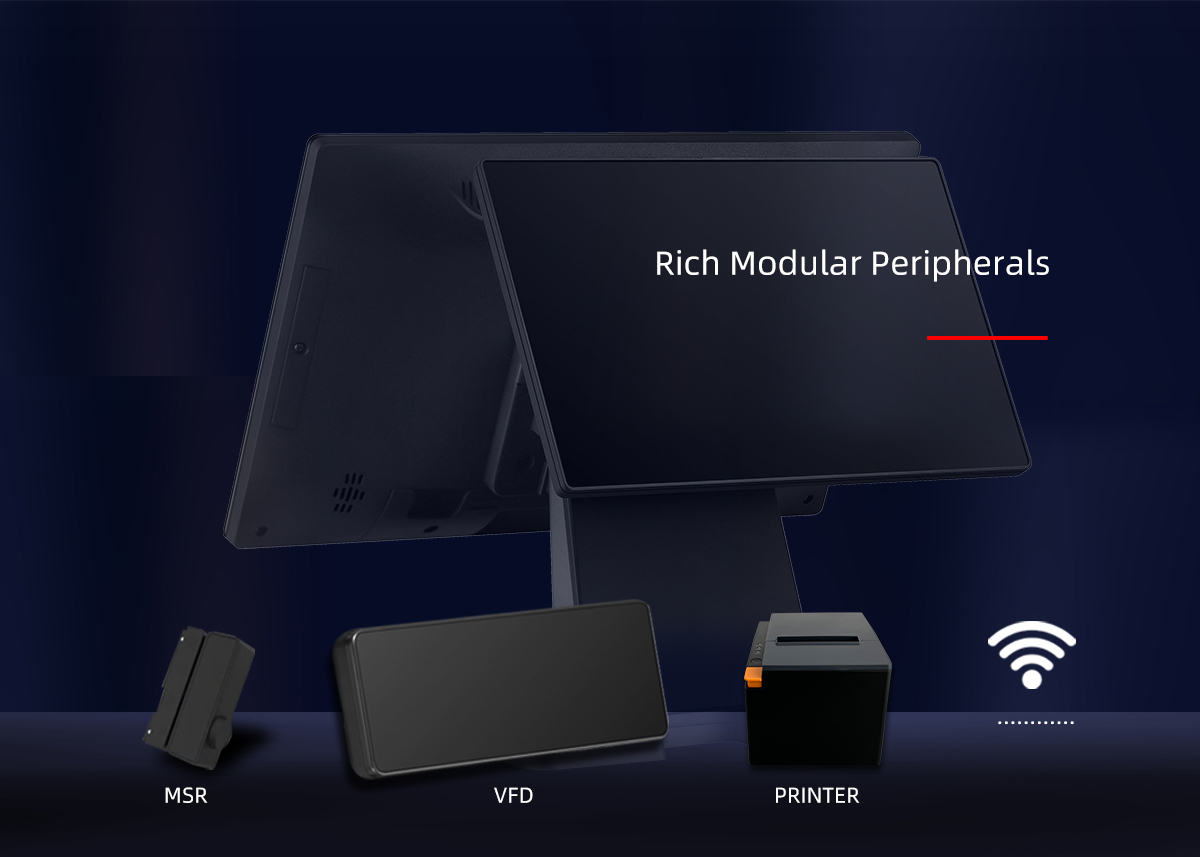

| Optional | MSR | MSR + iButton (Combo)/MSR +RFID (Combo) ,USB , 1,2,3 Track, ISO7810,7811-1/2/3/4/5,IBM,AAMVA,JIS-2 Standard |
| Fingerprint | U4500(USB Fingerprint Reader Module) | |
| Scanner | DY3090(USB,1D,2D,Reading precision:≥3mil,Dimension:21.4mm*10.8*15.2mm) | |
| Customer display | VFD display, USB(VCOM),2x20 characters | |

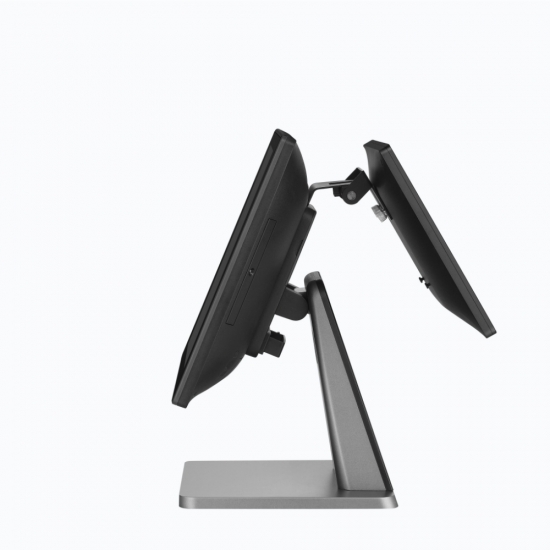

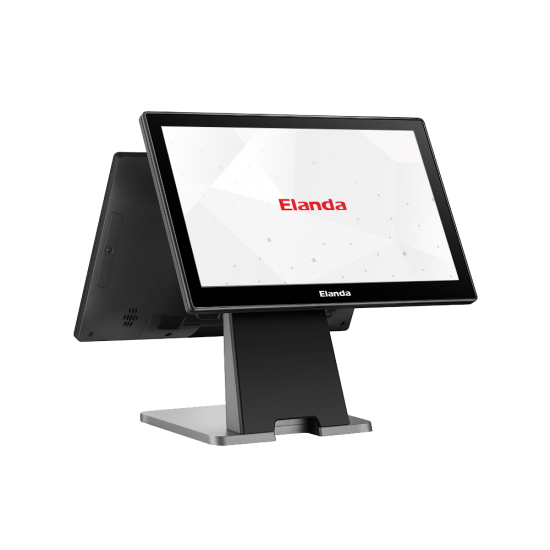

| 2nd Display | EDP,11.6" (1366 x 768) EDP,15.6" (1366 x 768) |
|
