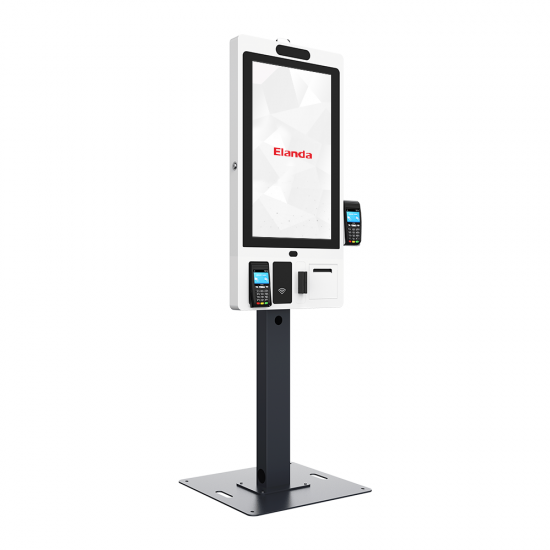

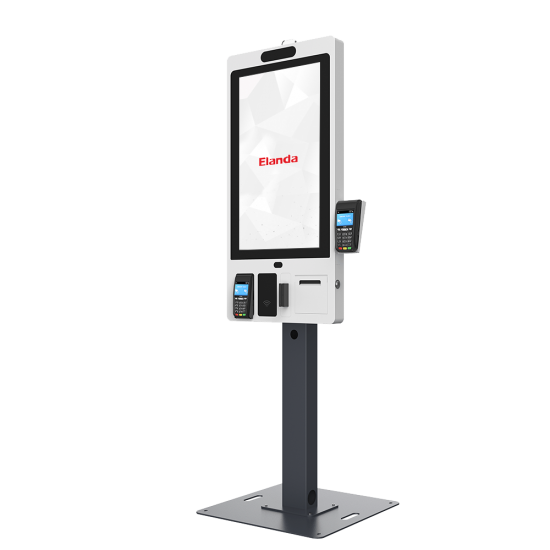

32 inch High Modular Touch Self-Service Kiosk
32”& 21.5” Module design and easy to maintain Strong, sealed, safe, 3-year warranty Desktop, free standing and wall-mounted optional
Specification
| model | S30 | |||
| CPU Support | Intel Elkhart Lake J6412 2.0GHz (up to 2.6GHz,1.5MB Cache) | Intel Core i3 1115G4 3.0GHz (up to 4.1GHz) | Intel Core i5 1135G7 2.4GHz (up to 4.2GHz) | |
| System Memory | 1 x DDR4,SO-DIMM, 4GB (Max. 32GB) | 1x DDR4, SO-DIMM, 4G, Max.64GB | ||
| Storage Device | 1 x mSATA/M.2 SSD 128GB (64G/256G optional) | 1 x mSATA 128G(64G/256G/512G optional) | ||

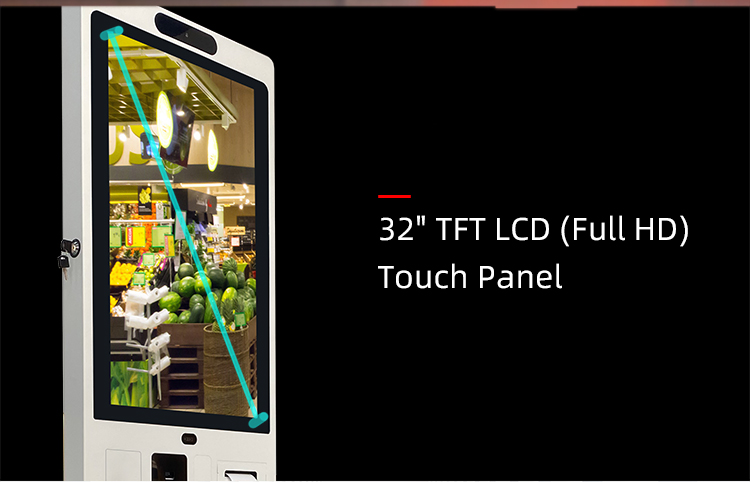

| LCD | Size | 32" TFT LCD Panel | ||
| Brightness | 300-350 cd/m² | |||
| Resolution | 1920 x 1080 | |||
| Touch Screen | True-Flat Projected Capacitive Touch | |||
| External I/O Port | USB | 3xUSB3.0 +7xUSB2.0 | 4 x USB3.0 +6xUSB2.0 | |
| Serial port | 2xRJ50 + 1xDB9 | 2 x DP9 | ||
| DC-IN | 1x DC-IN | |||
| VGA | N/A | 1 x VGA | ||
| HDMI | 2 x HDMI | |||
| LAN | 2 x LAN (10/100/1000Mb) | 1 x LAN (10/100/1000Mb) | ||
| Audio | 1xAudio (3.5mm earphone connector,Support Line-Out&Line-In) | 1xAudio | ||
| LVDS Signal | 1xLVDS Signal 30pin receptacle | N/A | ||
| LVDS Backlight | 1xLVDS Backlight 6pin receptacle | N/A | ||
| Speaker | 2 x 2w Speaker receptacle (2pin 2W) | N/A | ||
| Power Switch | 1 x Power Switch | |||
| Power | 1 x 12V-5A 60W (system) / 1 x 24V-2A 48W (Printer) | 1 x 12V-7A/84W (system) + 1 x 24V-2A/48W(Printer) | ||
| OS Support | Windows11/10 LTSC/Ubuntu 20.0.4 | |||
| Standard Components | Printer | 3" thermal printer w/auto cutter, 170 mm/sec (max.) | ||
| Camera | 5MP Single camera /5MP Dual camera (optional) | |||
| Proximity Sensor | Range from 60-80cm | |||
| Speaker | 2 x 2w Speakers | |||
| Environment | Operating Condition | 0°C ~ 50°C, 20% - 90% RH | ||
| Storage Condition | -20°C ~ 70°C, 10% - 90% RH | |||
| Physical Parameter | Screen | 526mm x 100mm x 1076mm | ||
| Column | 120mm x 85mm x 1200mm | |||
| Chassis | 601.5mm x 601.5mm x 6mm | |||
| Optional | WIFI | mPCI-E WiFi/BT module | ||
| Scanner | VH460 (USB, 1D, 2D, Reading precision: ≥ 3mil, Dimension: 36mm x 45mm x 25mm) DY3090 (USB, 1D, 2D, Reading precision: ≥ 3mil, Dimension: 21.4mm x 10.8mm x 15.2mm) |
|||
| MSR | USB-HID Mode; 1, 2, 3 Track; ISO7810, 7811-1/2/3/4/5, IBM, AAMVA, JIS-2 Standard | |||

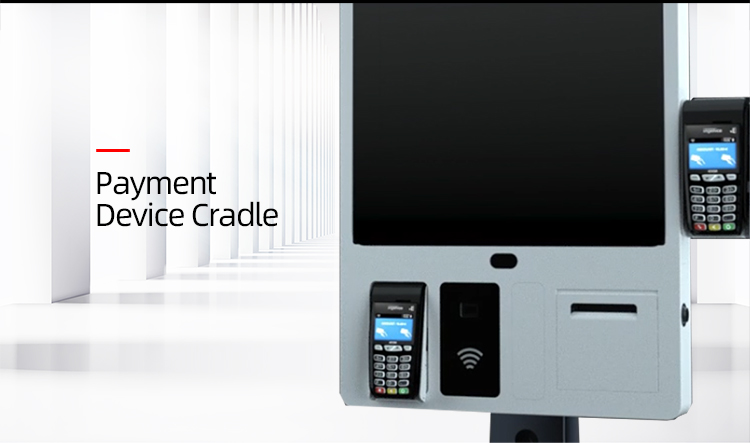

| Payment Device Bracket | Custom bracket support for various EMV payment devices | |||
| Status light | Printer status light (Red light indicate error, Blue light indicate working) | |||
| NFC/RFID Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), NFC protocols - tag read/write (ISO/IEC-18092) | |||
| Pedestal | Metal chassis, Metal columns | |||

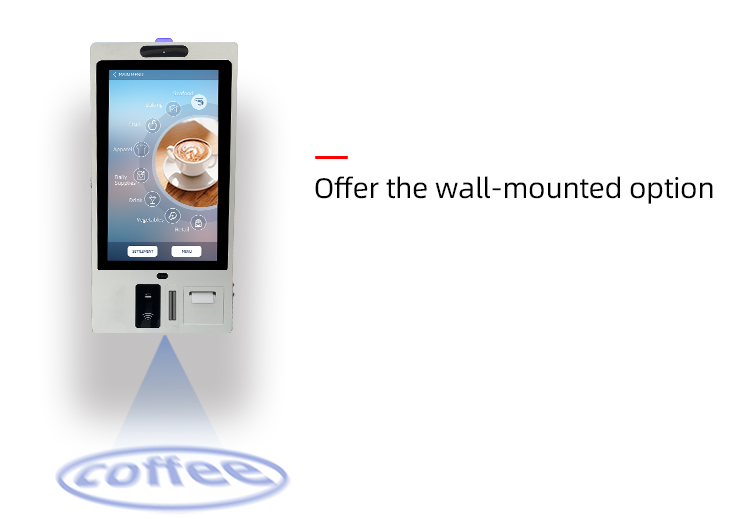

| Wall Mount Bracket | Wall Mount Bracket (70mm from Wall to System) | |||
